Supplier details
The basics
- Legal name
- Steward Metal Fabricating, Inc.
- Also known as
- SMF Inc.
- Founded
- 1968 · family owned, three generations
- Address
- 788 Hoff Rd., O'Fallon, MO 63366
- Phone
- 314-862-0918
- sales@smfinc.net
- Primary NAICS
- 332322 · Sheet Metal Work Manufacturing
- Business type
- Contract manufacturer · build to print
- File formats
- DXF, DWG, STEP, PDF
- Materials
- Mild steel, stainless, aluminum, brass, copper
- Lead time
- 1 to 3 weeks typical · add 1 to 2 weeks with finishing
- Quality certifications
- None held
- Shipping
- Nationwide
Classification codes
NAICS & SIC
Need a W-9, a certificate of insurance or supplier onboarding paperwork? Call 314-862-0918 and we will send it the same day.
How we take work
From one part to a standing order
A quantity of one and a repeating production order run on the same laser and the same press brakes. There is no separate prototype shop here, and no minimum you have to clear before we will look at a drawing.
Prototypes and one-off parts
A quantity of one runs on the same laser and the same brake as a production order. No separate prototype shop, no minimum you have to hit before we will look at the drawing.

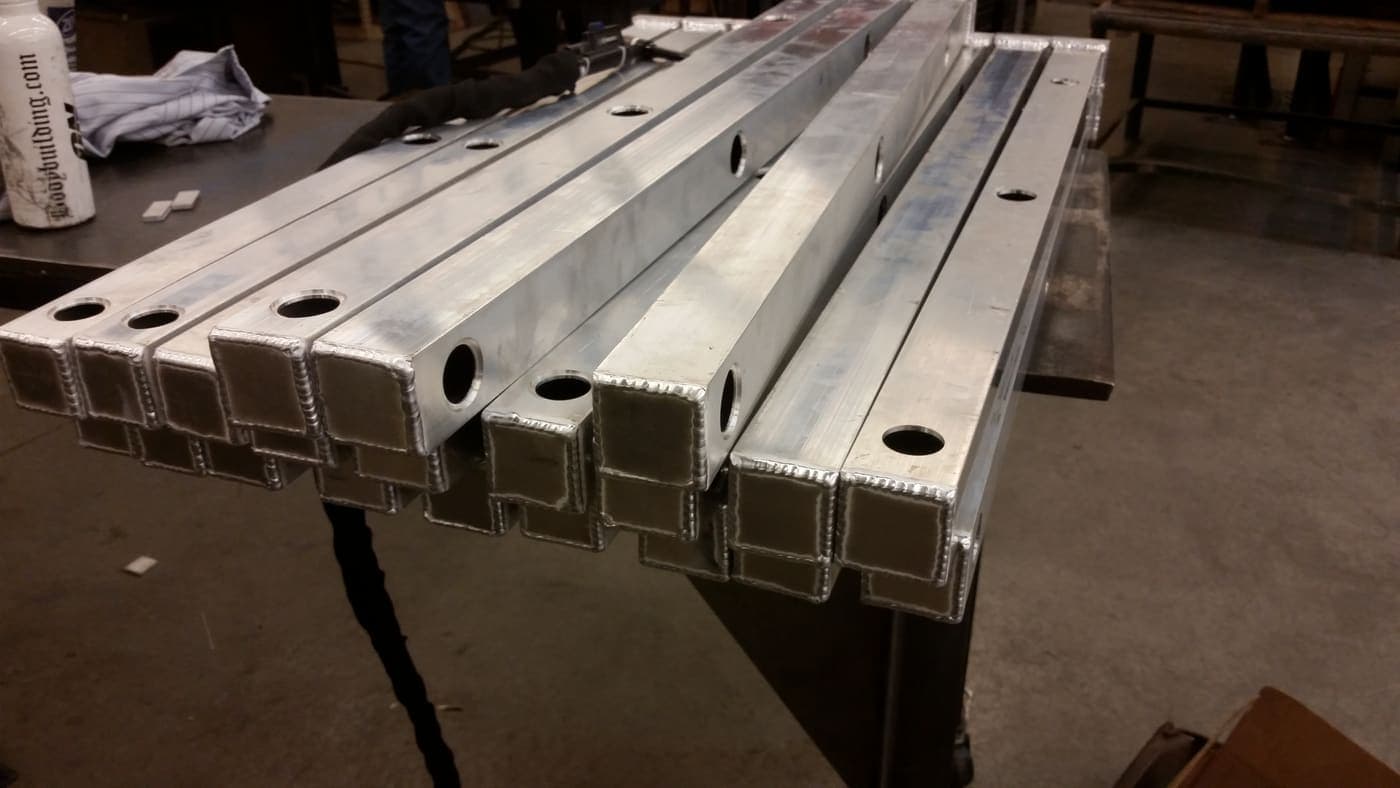

Welded assemblies
Cut, formed, welded and hardware-installed as one finished assembly, rather than a box of parts you have to put together.
Contract manufacturing and build-to-print
Send the print. We quote it, build it to the drawing and ship it, on a repeating schedule if that is what you need.
Production runs
The same part, the same way, run after run. CNC brakes and laser programs mean the hundredth part matches the first.
Equipment
Five press brakes, 60 to 230 tons
Five CNC and NC press brakes from 6 to 12 feet and 60 to 230 tons, so the part goes on the machine that suits it rather than the only machine we own.
| Machine | Bed | Tonnage | Control |
|---|---|---|---|
| Adira | 10 ft | 230 ton | Esabend CNC control, offline programmable, crowning control, precision ground tooling |
| HTC | 12 ft | 155 ton | NC backgauge |
| HTC | 10 ft | 125 ton | NC backgauge |
| LVD | 8 ft | 90 ton | NC backgauge |
| Accurpress | 6 ft | 60 ton | NC backgauge |
Large inventory of precision ground tooling. Laser cutting runs on a 6kW Mitsubishi fiber laser with a 60" × 120" bed, a full 5 ft by 10 ft sheet. Machining runs on Haas CNC equipment.
Tolerances
What we typically hold
These are typical capabilities, not a blanket guarantee on every part. What we can actually hold depends on the material, the thickness, the geometry, the size of the part and what inspection the job calls for. Send the print with your critical dimensions called out and we will tell you before you order.
Fabricating
| Feature | Standard capability |
|---|---|
| Laser cut dimensions | ±0.010" |
| Hole / slot location | ±0.010" |
| Bend angle | ±1° |
| Bend-to-bend dimensions | ±0.020" |
| Sheared dimensions | ±0.010" |
| General fabricated dimensions | ±0.030" |
| Welded assembly dimensions | ±0.060" |
CNC machining
| Feature | Standard capability |
|---|---|
| Linear dimensions | ±0.002" |
| Hole location | ±0.002" |
| Hole diameter | ±0.001" |
| General machined dimensions | ±0.002" |
| Critical featureswith appropriate processes and inspection | ±0.0005" |
Lead time is 1 to 3 weeks depending on how much processing the part goes through, and add 1 to 2 weeks when the part goes out for powder coat, plating or anodizing.
Who we build for
Industries we already run production for
Office furniture
One of the largest sources of repeat production work in the shop.
Automotive
Components and subassemblies for automotive manufacturers and their suppliers.
Construction
Equipment components and fabricated assemblies for construction manufacturers.
Elevator
Formed and welded components for elevator equipment.
Water and hydrant systems
Fabricated parts for water infrastructure products.
Processes
What runs in the building
What we do not do, so nobody wastes a call: no turret punching, no plate or tube rolling, no waterjet, no CNC turning or 4-axis machining, no structural steel or metal buildings, and no on-site installation. Finishing is coordinated through partners rather than performed here.
Setting us up as a vendor?
Call 314-862-0918 or email sales@smfinc.net.
